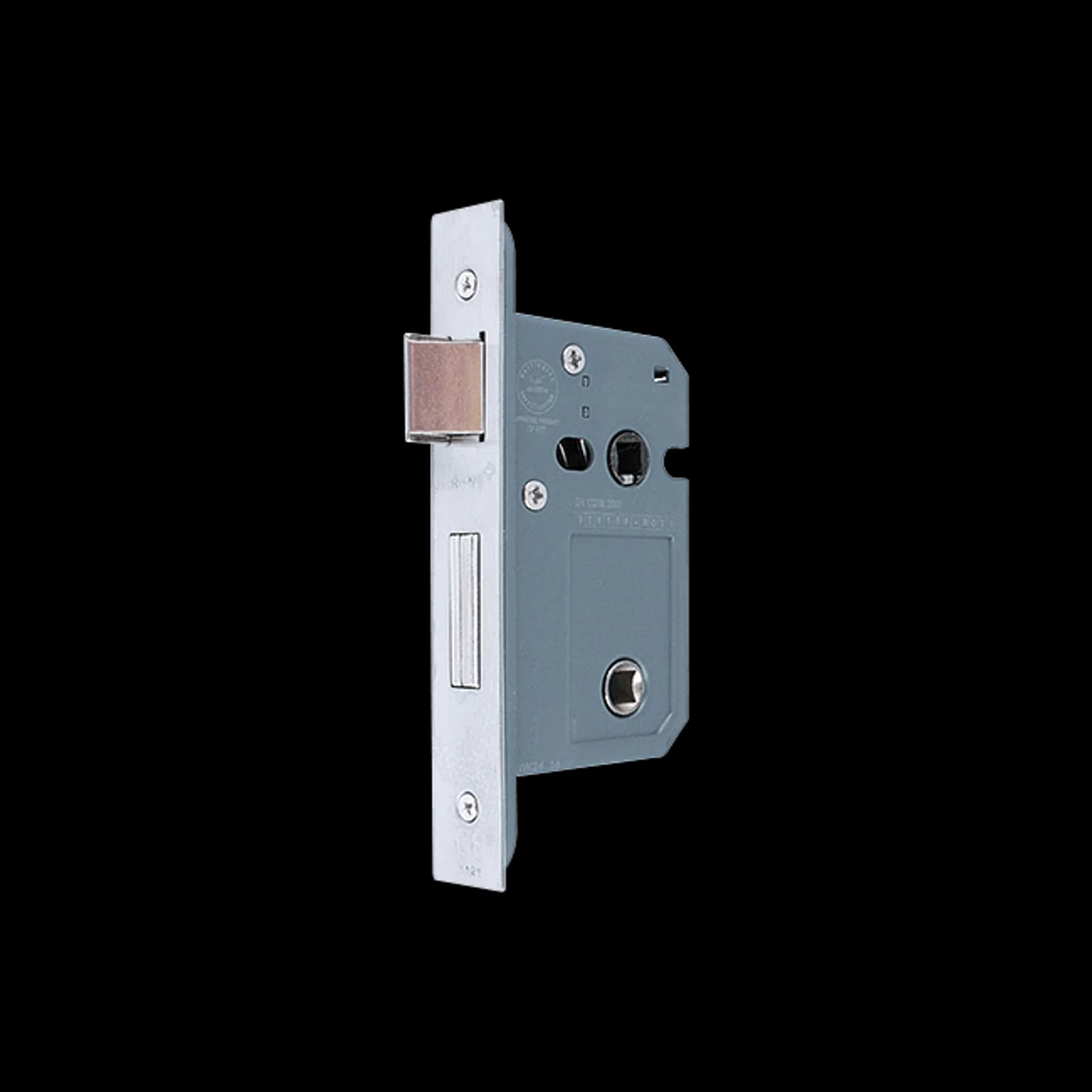

Ar8023 Mortice Bathroom Sashlock

Description

Details : Face Plate Finish: F69 Satin Stainless Steel, F77 Brass-Coloured- Polished Keyhole distance: 57mm Shape: Square Backset: 44mm, pierced for furniture and escutcheons at 38 mm centres. Case size: Depth: 67mm, length: 108mm, width: 17mm Also available in Backset: 57mm, pierced for furniture and escutcheons at 38mm centres and Case size: Depth: 80mm, length: 108mm, width: 17mm Function: Latchbolt and deadbolt operation Forend/strike material: Stainless Steel Forend type: Double Certifire approved: CF577; DOP: HUK0046 CE Marked: AG0103 (EN 12209) EN 12209: 2 | H | 8 | 1* | 0 | F | – | B | 0 | 2 | 0 Testing: Included in a successful fire test to EN 1634 Part 1: Assessed for use on 60 minute timber fire doors. The AR8023 series lock case has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained. HOPPE takes no responsibility for any locks purchased and fitted without sufficient intumescent protection. Suitable for sprung and some light un-sprung lever furniture Laminated steel deadbolt, 20mm projection 8mm bathroom follower with 5mm reducing adaptor
